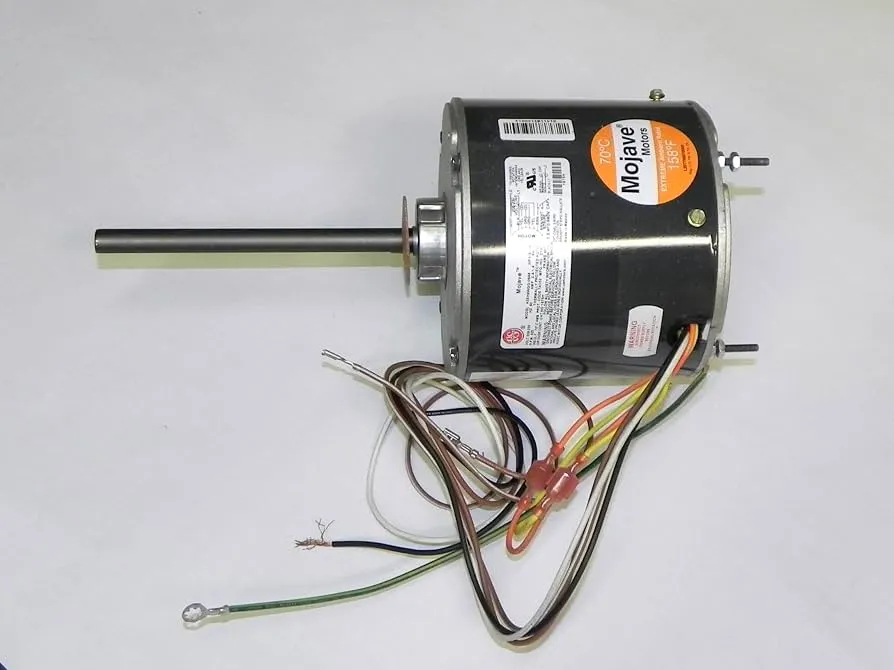

Condenser fan motor replacement
Outside fan not spinning?Turn the system off now.
If the compressor is running while the outdoor fan sits still, heat has nowhere to go. Pressures climb fast, and every extra minute costs you compressor life. This one is genuinely worth acting on immediately.
Do this first
Running it like this damages the compressor
The outdoor fan exists to pull air across the condenser coil and dump your home's heat outside. With the fan stopped and the compressor still running, that heat has nowhere to go. Head pressure and discharge temperature climb within minutes.
The system will usually protect itself by tripping a high-pressure switch or the compressor's internal overload. But that protection is a last resort, not a design feature, and repeated cycles of it take real life off a compressor.
The fan motor is a moderate repair. The compressor is not. Switching it off now is the difference between the two.
What to do right now
- Set the thermostat to OFF, not just to a higher temperature
- Switch the outdoor unit off at its disconnect or breaker if you can do so safely
- Leave the indoor fan on if you want some air movement — that part is harmless
- Do not open the outdoor unit panel or try to spin the fan by hand
- Call and describe exactly what you heard and saw before it stopped
Fan motor, or just the capacitor?
A fan that will not spin is a symptom, and two very different parts produce it. One costs a fraction of the other, so this distinction is worth insisting on before anybody quotes you a motor.
Probably the capacitor
The cheaper answer
- The fan hums but does not turn
- It spins freely when the technician turns it by hand with the power off
- It starts and keeps running once given a nudge
- Capacitance measures below its rated microfarad tolerance
- The motor is not hot to the touch and there is no burning smell
Probably the motor
The larger repair
- The shaft is stiff or seized and will not turn by hand
- Grinding, squealing or rumbling from the bearings before it stopped
- A burning smell, or the motor housing very hot
- Windings read open or shorted to ground on a meter
- It still will not run with a known-good capacitor fitted
A fan that will not spin should always have its capacitor measured before a motor is quoted. More on capacitor replacement.
A replacement motor has to match on six things
Universal motors exist and they work perfectly well — when they are specified correctly. Get one of these wrong and the new motor runs hot, performs badly, or fails early.
- HorsepowerUndersized runs hot, oversized draws more current than the circuit expects.
- Speed in RPMDetermines airflow across the coil, which determines how well the system rejects heat.
- VoltageMust match the unit's supply. Not something to approximate.
- Rotation directionWrong rotation pushes air the wrong way through the coil and cools nothing.
- Frame size and shaftHas to physically mount and carry the existing blade correctly.
- Capacitor requirementA new motor often needs a different microfarad rating, so the capacitor is replaced with it.
We also replace the capacitor whenever a motor is replaced. A weak capacitor is frequently what killed the old motor, and reusing it on a new one is a repair you will be paying for twice.
Why condenser fan motors fail in Fresno
Four causes, and three of them are preventable.
-
Heat and run hours
The motor sits directly above a coil rejecting heat into 105-degree air, running for months at a stretch. Bearings and windings both degrade faster in those conditions than almost anywhere else in the country.
-
A weak capacitor straining it
A capacitor drifting out of tolerance makes the motor work harder on every start and run cycle. Left long enough, the capacitor takes the motor with it — which is why the two are so often replaced together.
-
A dirty condenser coil
Valley dust packed into the fins means the motor is moving air against more resistance and everything above it runs hotter. An annual coil clean genuinely extends motor life here.
-
Debris and physical damage
Landscaping debris, cottonwood, a bent blade or something dropped through the grille. A blade out of balance destroys bearings quickly, and a bent blade should be replaced rather than straightened.
What it costs
Published, so you know before you call
Condenser fan motor replacement in the Fresno area typically falls in the range below, including the diagnostic, the motor, the matching capacitor and verification that the system runs correctly afterwards.
The spread comes down to horsepower, whether an OEM motor is required or a properly specified universal will do, and how accessible the unit is. If the capacitor turns out to be the actual fault, the repair is considerably less — and we will tell you that rather than quote the motor anyway.
Fan motor questions
My outside AC fan is not spinning. Can I still run the system?
No. Turn it off at the thermostat and at the breaker. With the fan stopped and the compressor running, head pressure and discharge temperature climb within minutes, and repeated overheating takes real life off a compressor. A fan motor is a moderate repair; a compressor is not.
Should I spin the fan blade with a stick to start it?
Please do not. It is a live electrical enclosure with a blade that will start turning at speed, and it tells you nothing you can safely act on. A technician performs that check with the power isolated and a meter in hand. If the fan needs a nudge to start, the capacitor is almost certainly failing and running it that way is not a solution.
How much does a condenser fan motor cost to replace in Fresno?
Typically $400 to $800 including the diagnostic, the motor, the matching capacitor and verification afterwards. The range depends on horsepower, whether an OEM part is required, and access. If the capacitor is the actual failure rather than the motor, the repair is considerably cheaper.
How long does the repair take?
Usually one to two hours when the correct motor is available. Common motors are frequently stocked on our trucks. Less common or OEM-specific motors may need ordering, and we will tell you a realistic timeline rather than an optimistic one.
Can a fan motor be repaired rather than replaced?
Not practically. These are sealed motors and rebuilding one is not economic against the cost of a new unit. What can often be repaired instead is the thing that stopped it — a failed capacitor, a wiring fault or debris jamming the blade — which is exactly why the motor should be confirmed dead before it is quoted.
Should the capacitor be replaced at the same time?
Yes, and we do it as standard. A weak capacitor is a common cause of motor failure, a new motor often requires a different microfarad rating, and reusing a marginal capacitor on a new motor risks the whole repair. It is a small part relative to the job.
Switch it off, then call us
We will confirm whether it is the motor or the capacitor before quoting either.
Prices shown are typical ranges for the Fresno area and are not quotes. Do not open the outdoor unit or attempt to start the fan by hand. California Heating & AC Repair is operated by Craftline Renovations, Inc. · CSLB License #999179 · Licensed and insured.
