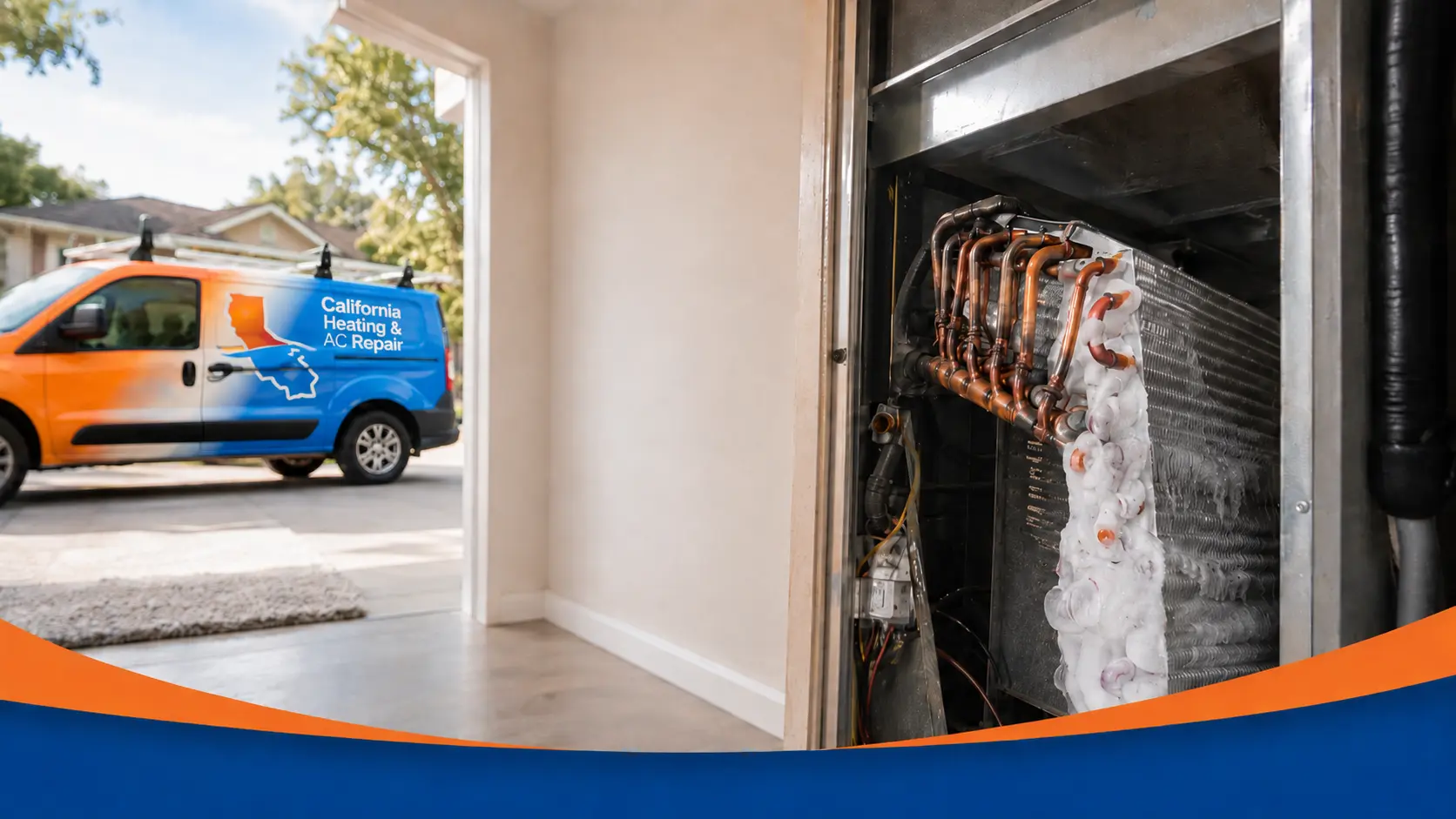

Evaporator coil replacement
Been told your coil is leaking?Check two things first.
A coil quote is the single most common moment a repair conversation turns into a replacement pitch. Before you agree to either, find out whether the coil is still under manufacturer warranty and whether anyone actually located the leak.
Check this first
Your coil may still be covered
Manufacturer parts warranties on residential HVAC commonly run around ten years on registered equipment, and the evaporator coil is a covered part. If your system is inside that window, the coil itself can arrive at no cost and you are paying for labor and refrigerant only.
That single check can change a four-figure quote into a very different number. It takes a model and serial number and a few minutes, and it gets skipped constantly — particularly by companies whose next slide is a replacement proposal.
How to check yours in five minutes
- Find the data plate on the outdoor unit, and on the indoor air handler or furnace cabinet.
- Note the model and serial numbers. The serial usually encodes the manufacture date, which starts the clock.
- Registration matters. Unregistered equipment usually drops to a much shorter base term, so status is worth confirming rather than assuming.
- Or send it to us. Text a photo to (559) 520-4240 and we will look it up, whether or not we installed the system.
Check this second
Was the leak located, or was the coil just the likeliest suspect?
A system low on refrigerant has a leak somewhere. The evaporator coil is a common place for one, but it is not the only place — line set joints, service valves, brazed connections, Schrader cores and the condenser coil all leak too, and several of those are dramatically cheaper to fix.
"It's the coil" said after a gauge reading and a glance is a hypothesis, not a diagnosis. Coils sit inside a cabinet, often in an attic, and confirming a leak in one takes actual work.
The coil is also the most expensive thing it could be, which is a poor reason for it to be the first answer.
How a coil leak is actually confirmed
- Electronic leak detection across the coil, joints and line set, with the cabinet opened rather than inspected through a panel.
- Bubble solution on accessible joints and fittings, which finds the cheap leaks that get overlooked.
- Nitrogen pressure test where the leak is slow or intermittent and will not show under normal operating pressure.
- Visual evidence — oil residue on the coil face or in the pan, since escaping refrigerant carries compressor oil with it.
Ask the company that quoted you which of these they did. If the answer is none of them, you have not yet been given a diagnosis. More on refrigerant leak repair.
Why evaporator coils leak
Useful to understand, because a coil failing at six years old feels like you were sold a lemon — and usually you were not.
-
Formicary corrosion
The most common cause of premature coil failure, and almost nobody explains it. Volatile organic compounds in ordinary indoor air — cleaning products, adhesives, new carpet, building materials off-gassing — can form formic acid on the copper. It eats microscopic tunnels through the tube wall that resemble ant burrows, which is where the name comes from. The pinholes are far too small to see and the coil looks perfectly fine.
-
Vibration and rub-through
Tubing that contacts a bracket, a cabinet edge or another line will wear through over years of running. Common where an install was rushed and something was not properly secured or isolated.
-
Failed brazed joints
A joint that was marginal from the factory or from a previous repair can open up under thermal cycling. This one is often repairable on its own, which is exactly why locating the leak precisely matters.
-
Corrosion from a wet, dirty coil
A coil sitting damp with accumulated dust and biological growth corrodes faster. In Fresno, valley dust drawn through a poorly filtered return accelerates this considerably.
-
Physical damage
Fins and tubing damaged during a previous service, an attic installation, or by something falling on the cabinet. Less common, but it happens.
Replace the coil, or the whole system?
This is the fork where most coil quotes become replacement quotes. Here is how the decision should actually go.
Replace the coil
- The coil is still under manufacturer warranty, so you pay labor only
- The system is under roughly ten years old and otherwise measures within spec
- The condenser and compressor are healthy on amp draw and pressures
- It runs R-410A or newer, so refrigerant is not the expensive part
- A properly matched replacement coil is available for your condenser
- This is the first significant failure the system has had
Consider the whole system
- The coil is out of warranty and the system is well past a decade old
- It runs R-22, where the refrigerant alone makes the job expensive
- The compressor is also showing signs of trouble on the readings
- No properly matched coil is available for an older condenser
- The coil cost approaches half of a complete, permitted replacement
- The system was sized wrong originally and has never kept up in July
Note that most of the left-hand column depends on the warranty check. That is why it is the first thing on this page rather than a footnote. See the full repair-or-replace framework.
What a proper coil replacement involves
More than swapping a part. Half the failures we see on previously replaced coils trace back to something on this list being skipped.
- Refrigerant recovered legally rather than vented
- A coil properly matched to your condenser, not just one that physically fits
- New metering device where the coil requires it
- Line set flushed or replaced if contamination is present
- New filter drier, every time
- Nitrogen purge while brazing to prevent internal scale
- Pressure test before evacuation, so you are not charging into a leak
- Deep vacuum verified with a micron gauge and a decay test
- Charge weighed in, then confirmed by superheat and subcooling
- Plenum and cabinet resealed properly, not taped over
- Condensate pan, drain and float switch checked and cleared
- Airflow and temperature split measured afterwards, not assumed
Skipping the drier, the nitrogen purge or the deep vacuum saves an hour and shows up years later as a second failure. It is invisible on the invoice and expensive in the end.
What it costs
The number swings enormously on one factor
Evaporator coil replacement in the Fresno area typically runs in the range below when the part is not covered. When the coil is still under manufacturer warranty, you are paying labor and refrigerant only and the figure drops substantially.
Access matters too. A coil in a garage air handler is a very different job from one in an attic in July, and refrigerant type affects the total as well. Your quote should be a firm number given after diagnosis, not an estimate over the phone.
Holding a quote right now
A coil quote is the best possible reason for a second opinion
We will diagnose the system independently, locate the leak properly, check the warranty status against your model and serial, and tell you plainly whether the recommendation holds up. Sometimes we agree with the other company and say so. Free, no obligation, and you keep everything we find.
Coil questions
How much does evaporator coil replacement cost in Fresno?
Typically $1,200 to $2,800 when the part is not covered by warranty, varying with access, coil size and refrigerant type. If the coil is still within the manufacturer's parts warranty you pay labor and refrigerant only, which is a substantially smaller number. Checking that first is the single most valuable thing you can do.
Can a leaking evaporator coil be repaired instead of replaced?
Sometimes. A leak at an accessible brazed joint can often be repaired properly. Formicary corrosion cannot — it produces microscopic pinholes throughout the tubing, so sealing one spot simply moves the problem. Which situation you have depends on where the leak actually is, which is why locating it precisely matters so much.
Why did my coil fail after only a few years?
Usually formicary corrosion. Volatile organic compounds in ordinary household air can form formic acid on the copper, which eats microscopic tunnels through the tube wall. It is well documented across the industry, it affects newer tighter homes as much as older ones, and it is not a sign that you were sold bad equipment.
Can I just add refrigerant each season instead?
You can, and it is a poor deal. Refrigerant is not consumed, so you are paying repeatedly for something escaping into the atmosphere while the compressor runs in a starved condition that shortens its life. Any company willing to top you up annually without locating the leak is selling you the same problem every year.
Does the new coil have to match my outdoor unit?
Yes. A coil that physically fits is not the same as one properly matched to your condenser and metering device. A mismatched system underperforms, uses more energy, and can create problems with the manufacturer if a warranty claim follows.
How long does a coil replacement take?
Generally most of a day once the correct part is on site, longer if access is difficult or the line set needs replacing. The evacuation and charge verification at the end are not steps to rush, and a job finished suspiciously fast usually means something on the list above was skipped.
Should I replace the whole system while it is open anyway?
Only if the evidence supports it. That argument is genuine when the system is old, out of warranty, on R-22 or showing compressor trouble as well. It is not genuine simply because a technician is already in your attic. Work the decision through here.
Find out what you are actually dealing with
Leak located properly, warranty checked, and both numbers put in front of you.
